MICRO series
Integrated Air Compressor
Why Choose Micro Series A Screw Air Compressor?
Quiet Operation
Enclosed, silent design, suitable for nearby workspaces.
Compact integrated design
A space-saving unit that integrates all components—including the main unit, motor, air receiver, and dryer—into a single assembly. Occupies an area of just 0.73 m².
Intelligent HMI + PLC Control
Integrated display and control, remote screen projection, data monitoring, and remote upgrades of HMI and PLC.
Stable air supply
Continuous, reliable air for connected
equipment, providing a stable air supply of 1m³ /min, a more hassle-free design.
Plug-and-Play Installation
Ready to operate with minimal setup.
-
Compact Design
Plug-and-Play
The main unit, motor, dryer, and air receiver are fully integrated into a single unit, featuring a compact structure with a footprint of only 0.73 m².
- Ultra-Quiet Operation
The Micro A Series screw air compressor features an enclosed cabinet, a low-vibration structure, and an optimized cooling airflow design.
Screw Air Compressor Stable Air Supply
ALL-UMW Gas Tank
Features a built-in 140-liter air receiver, providing a stable air supply of 1m³ /min.
Refrigerated Air Dryer
Compact 1 m³-class shell-less design, delivering 1.2m³/min of dried compressed air.
Single-Stage Screw Compressor Air End
4-Bearing Structure: Ensures enhanced reliability of the main unit.
Reinforced Housing: Made of high-strength cast iron, the machine’s service life is extended by 30%.
High-Efficiency Motor System
Air-cooled permanent magnet motor with an efficiency rating of up to 92%, capable of saving up to 15 kWh of energy consumption per day.
Intelligent HMI Monitoring System
● Integrated HMI + PLC
Combines the Human-Machine Interface with a Programmable Logic Controller.
● Stable and Efficient Processing
Features a quad-core processor with upgraded memory for smoother operation.
● Rich Interfaces and Flexible Expansion
Supports multiple RS485 ports, facilitating easy connectivity and expansion.
● Remote Maintenance
Supports remote screen mirroring, monitoring, and HMI/PLC updates, enabling effortless and efficient maintenance.
Easier Installation
Prefabricated design reduces installation time and complexity by 30%, cuttinginitial setup costs.
Average Savings
30%
Lower Maintenance
Long-life air compressor components extend service intervals by 50%, reducing maintenance costs.
Maintenance Reduction
50%
Lower Energy Use
High-efficiency IP23 motor and advanced control system reduce energy consumption by up to 20%.
Energy Savings
20%
More Uptime
Reliable design and real-time monitoring minimize unexpected failures and downtime by up to 50%.
Downtime Reduction
50%

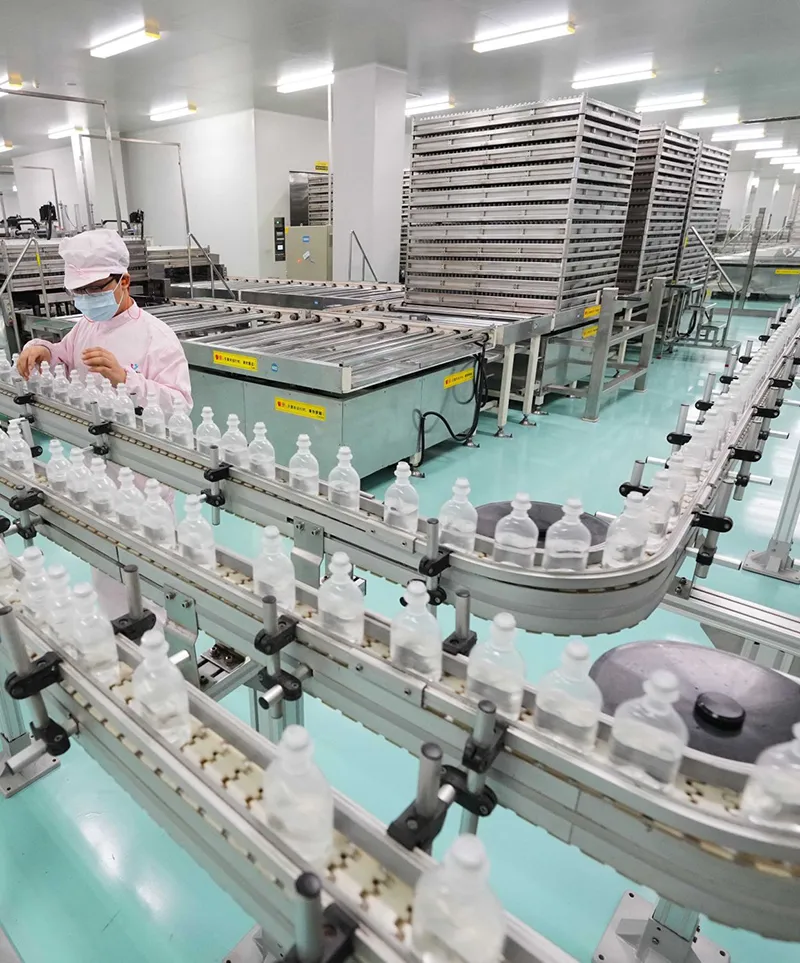

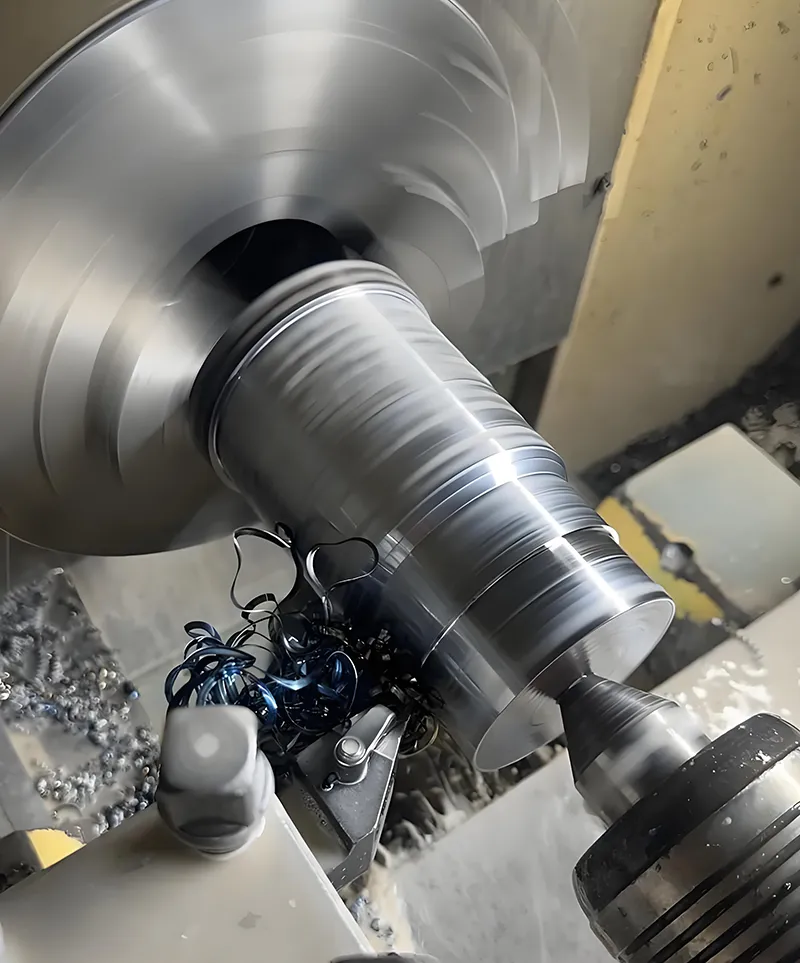

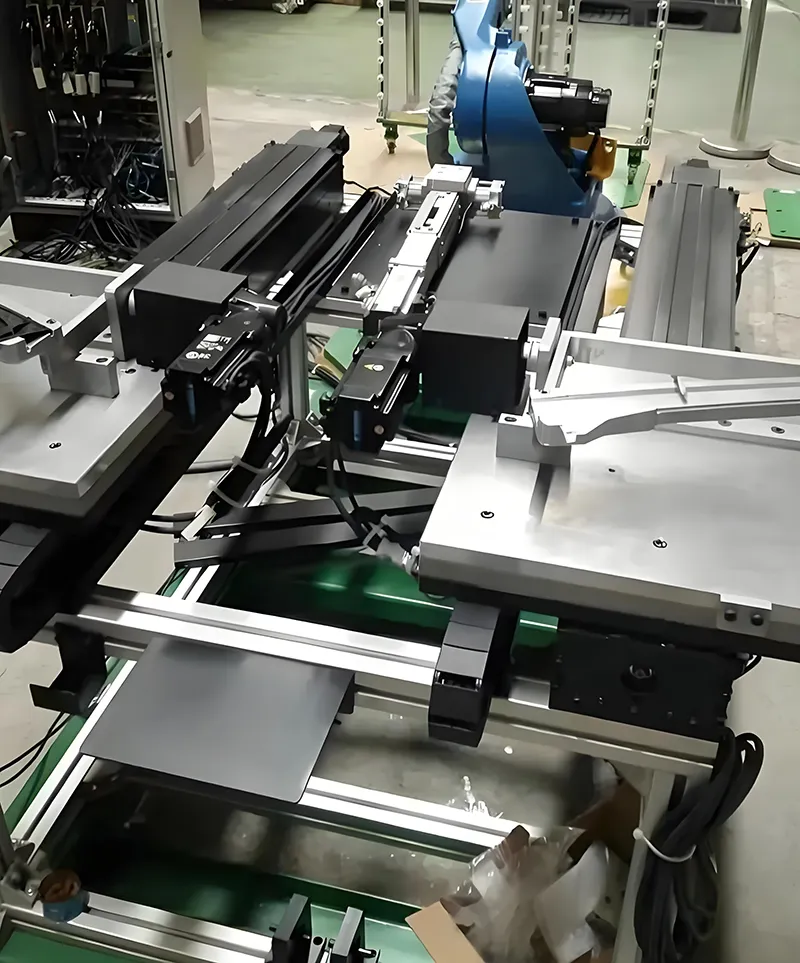

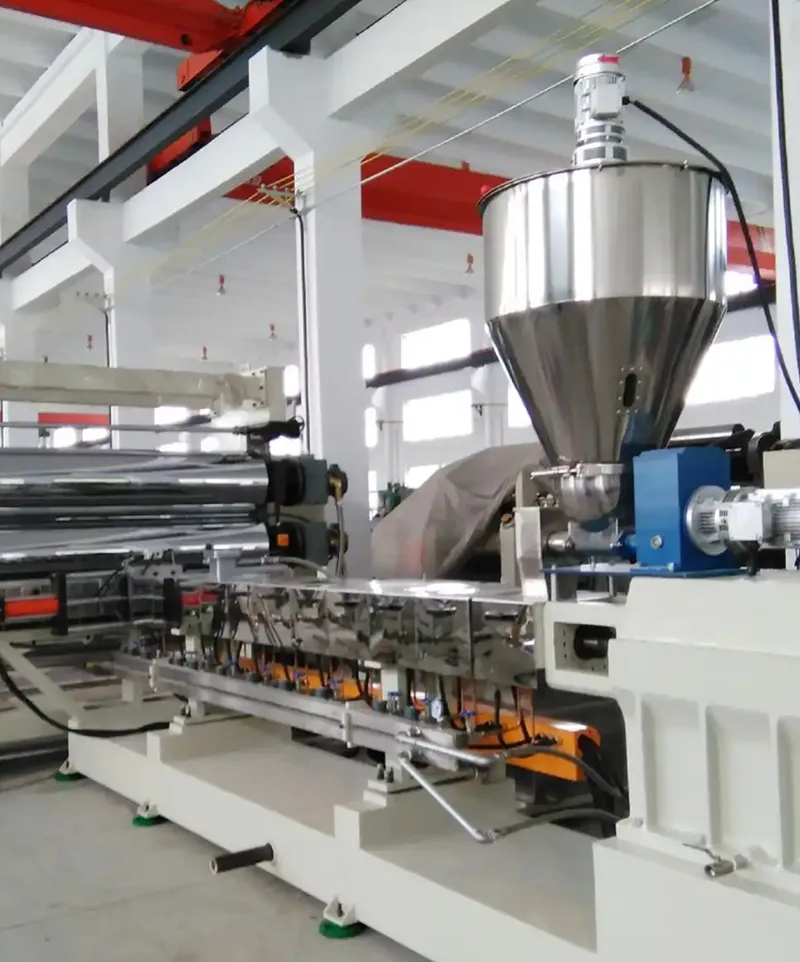

Applications of Micro Integrated Air Compressors
Detailed Specifications of Micro Air Compressor
Integrated Screw Air Compressor
| Power (kW) | Working Pressure (bar) | Standard Air Flow (m³/min) | Horizontal Two-Stage Air Flow (m³/min) |
|---|---|---|---|
| 4 | 8 | 0.44 | - |
| 10 | 0.43 | - | |
| 13 | 0.43 | - | |
| 5.5 | 8 | 0.61 | 1.04 |
| 10 | 0.60 | 1.03 | |
| 13 | 0.59 | 1.01 | |
| 7.5 | 8 | 1.11 | 1.04 |
| 10 | 1.09 | 1.03 | |
| 13 | 1.05 | 1.01 |
Intelligent Control System
| Specifications | Details |
|---|---|
| Dimensions | 7" |
| Resolution | 800*480 |
| Brightness | 350 |
| Display Type | Landscape Orientation |
| CPU | A7 Quad-core 1.2GHz |
| Touchscreen Type | 4-Wire Industrial Resistive |
| Input Voltage | 17V AC~24V AC/45HZ~65Hz |
| Dimensions (W x H x D) | 258 mm x 194 mm x 67 mm |
| Operating Temperature | -10°C~+55°C |
| CE Certification | Compliant |
FAQ
The Micro A Series is available in 4 kW, 5.5 kW, and 7.5 kW configurations, suitable for small to medium workshop applications.
Micro A Series integrated air compressor features a plug-and-play design with an integrated air receiver, motor, dryer, and main unit, allowing for minimal setup and quick operation.
Depending on the specific power output and operating pressure, Micro air compressors offer varying air delivery rates ranging from 0.43 to 1.1 m³/min; please select the model that best suits your requirements.
Ideal for CNC machining, laser cutting, injection molding, packaging, finishing plants, and other small-to-medium industrial applications.
Yes, it has a built-in HMI + PLC control system for real-time monitoring of pressure, temperature, alarms, and operational status.
