PRIME series
Industrial Air Compressor Solutions
Engineered for stable, efficient and intelligent compressed air supply.
11–22 kW
Power Range
Integrated
Air Receiver
PLC + HMI
Intelligent Control
High Energy
Efficiency
Why Choose Prime Series Industrial Air Compressor?
All-in-One Design
The main unit, motor, dryer, air receiver, and control system are integrated into a single unit, occupying a minimum footprint of just 1.5 ㎡.
Stable Air Treatment
The system has a built-in dryer and air tank, which can reduce moisture and pressure fluctuations and ensure a stable supply of compressed air, up to 2.73 cubic meters per minute.
Intelligent HMI + PLC Control
The integrated HMI and PLC control system provides real-time monitoring of pressure, temperature, alarm information.
Energy Savings
VSD automatically matches air output to real demand, helping reduce energy waste by up to 30%.
Industrial Grade Power
Offers high-power options ranging from 11 to 22 kW, suitable for factories with high air consumption requirements.
Industrial Air Compressor Stable Air Output
Two-Stage Air-Cooled Screw Compressor Main Unit
Morse Taper No. 4 connection ensures smoother and more stable compression performance.
Built-in Air Dryer
The built-in refrigerated dryer dries the compressed air, with a processing capacity of 3.8 m³/min.
UMW Gas Tank
Prime series is equipped with a built-in 340-liter gas tank, providing a stable gas supply of up to 2.73m³/min.
High-Efficiency Motor System
Air-cooled permanent magnet motors with power ranging from 11kW to 22kW, combined with an IP23 integrated housing.
Two-Stage Screw Compressor Main Unit
Morse Taper No. 4 connection ensures smoother performance.
UMW Gas Tank
Built-in 340-liter air receiver, providing a stable air supply of up to 2.73 m³/min.
Built-in Air Dryer
The built-in refrigerated dryer dries the compressed air, with a processing capacity of 3.8 m³/min.
Motor System
Air-cooled permanent magnet motor with an integrated housing rated at IP23.
- Energy-Efficient Operation
Compared to fixed-speed systems, variable frequency drives can adjust output based on actual air demand, reducing energy consumption by approximately 10% or more.
By integrating permanent magnet synchronous motors with intelligent control systems, IES2/IE5 energy efficiency standards can be achieved.
- Industrial-Grade High Power
With 11kW, 15kW, and 22kW power options, Prime Industrial air compressor is designed for small and medium industrial workshops requiring stronger and more stable air supply.
- Energy-Efficient Operation
Compared to fixed-speed systems, variable frequency drives can adjust output based on actual air demand, reducing energy consumption by approximately 10% or more.
- Industrial-Grade High Power
With 11kW, 15kW, and 22kW power options, Prime Industrial air compressor is designed for small and medium industrial workshops requiring stronger and more stable air supply.
Integrated Design for Easier Installation
- Motor, screw air end, dryer, control system, air tank and filter integrated in one unit
- Connect power and air outlet for stable compressed air
- Compact footprint for limited workshop space
- Lower installation complexity and faster deployment
Integrated Design for Easier Installation
- Motor, screw air end, dryer, control system, air tank and filter integrated in one unit
- Connect power and air outlet for stable compressed air
- Compact footprint for limited workshop space
- Lower installation complexity and faster deployment
Intelligent HMI Control System
● 7-inch Color Touchscreen Control
7-inch color touchscreen with keypad operation for intuitive compressor monitoring and control.
● Two-Stage Pressure and Temperature Monitoring
Real-time and accumulated power consumption monitoring helps users track energy usage and optimize operating costs.
● Real-Time Energy Consumption Tracking
Real-time and accumulated power consumption monitoring helps users track energy usage and optimize operating costs.
● RS485 Inverter Control with PID Regulation
RS485 inverter control with PID regulation enables stable pressure and temperature control.
Intelligent HMI Control System
● Real-Time Energy Consumption Tracking
Real-time and accumulated power consumption monitoring helps users track energy usage and optimize operating costs.
● RS485 Inverter Control with PID Regulation
RS485 inverter control with PID regulation enables stable pressure and temperature control.
Industrial Air Compressor Intelligent Alarm Indicator Panel
Clear visual status reminder in busy factory environments.
Steady Green Light
Indicates normal compressor operation and stable system status.
Yellow-Green Flashing Alert
Provides a clear visual reminder when faults or abnormal conditions occur.
Faster Troubleshooting
Helps operators identify system issues earlier and reduce unnoticed downtime.

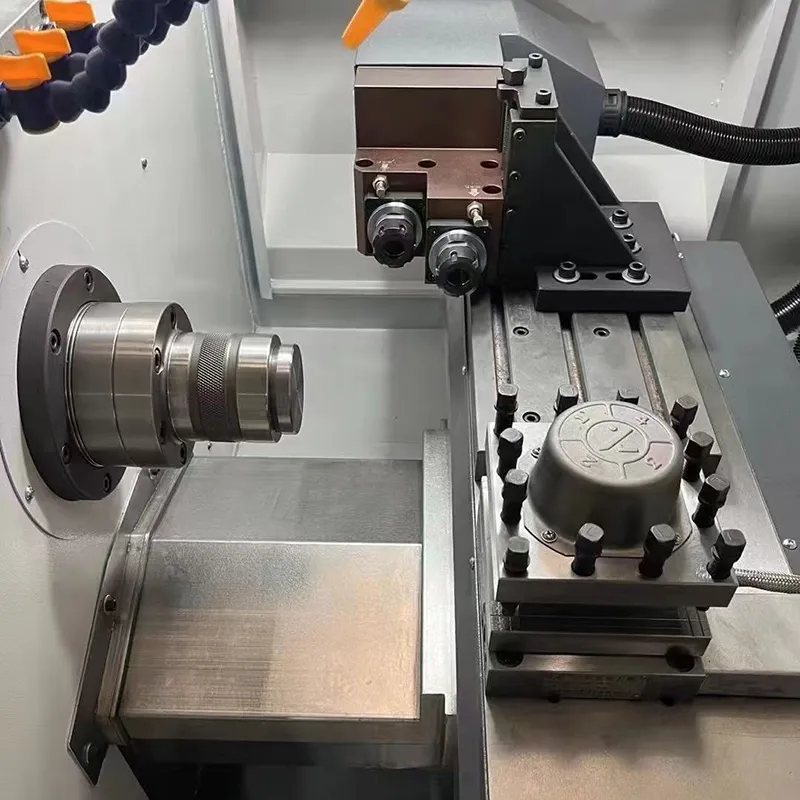

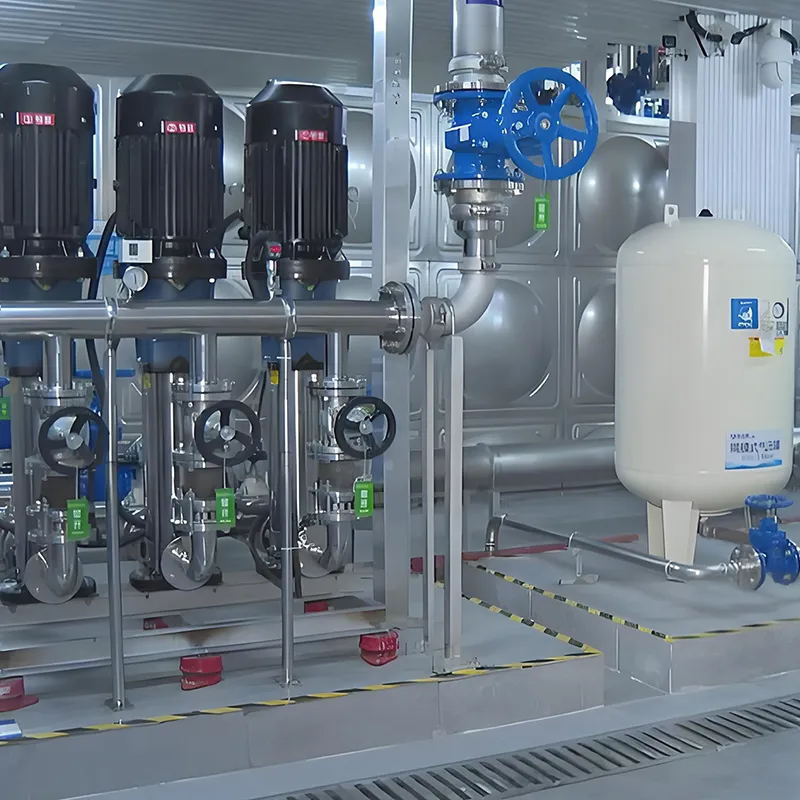

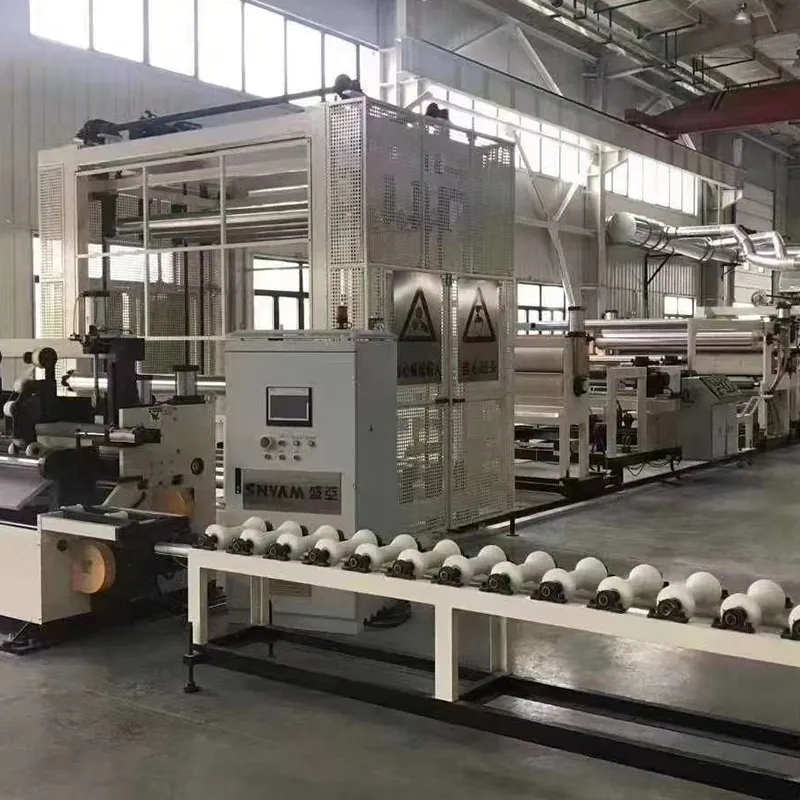

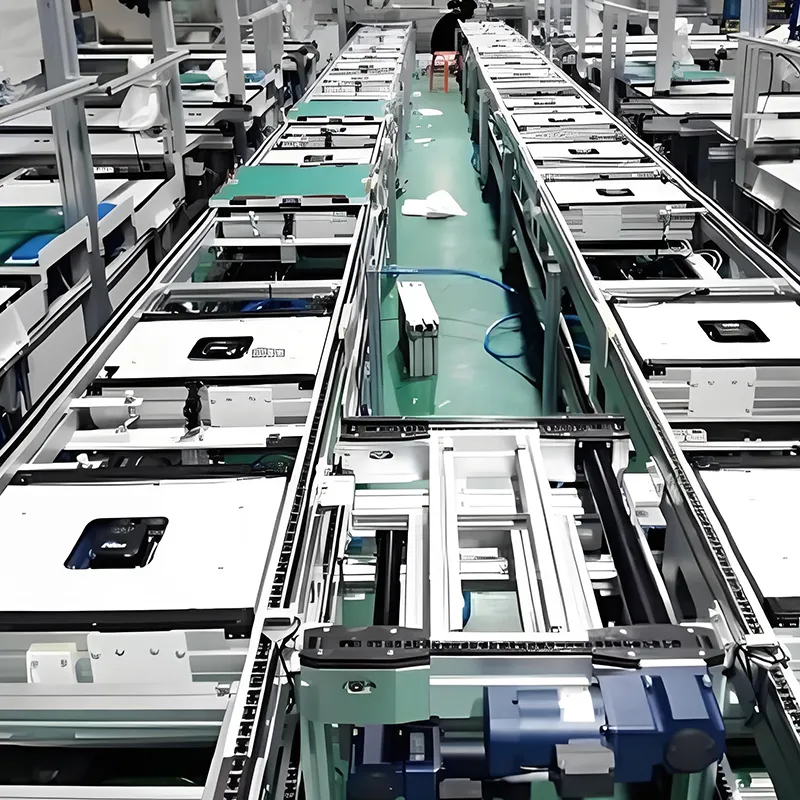

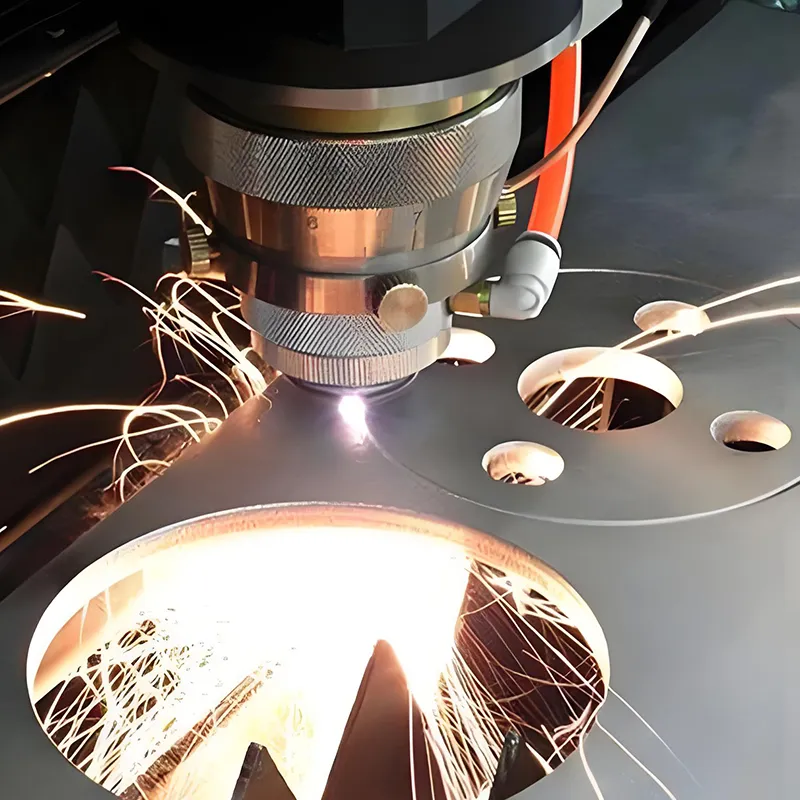

Applications of Prime Industrial Air Compressors
Detailed Specifications of Prime Air Compressor
| Power (kW) | Working Pressure (bar) | Standard Air Flow (m³/min) | Horizontal Two-Stage Air Flow (m³/min) | Vertical Dual-Stage Air Flow (m³/min) |
|---|---|---|---|---|
| 11 | 6 | 1.69 | 2.43 | - |
| 8 | 1.66 | 2.40 | - | |
| 10 | 1.63 | 2.37 | - | |
| 13 | 1.60 | 2.33 | - | |
| 15 | 6 | 2.42 | 2.76 | - |
| 8 | 2.39 | 2.73 | - | |
| 10 | 2.36 | 2.70 | - | |
| 13 | 2.32 | 2.65 | - | |
| 16 | 2.23 | 2.60 | - | |
| 20 | 2.19 | 2.54 | - | |
| 22 | 8 | 3.76 | 3.52 | 4.20 |
| 10 | 3.72 | 3.48 | 4.19 | |
| 13 | 3.66 | 3.42 | 4.71 | |
| 16 | 3.47 | - | 4.15 | |
| 20 | 3.42 | - | 4.13 |
FAQ
Yes. Prime series adopts an integrated structure that can include the compressor host, motor, dryer, filtration system, and air receiver tank in one machine.
Micro series is mainly designed for smaller air demand applications, such as 4kW, 5.5kW, and 7.5kW workshops. Prime Series offers higher power options, including 11kW, 15kW, and 22kW, making it more suitable for medium industrial applications and multi-equipment air supply.
Depending on the specific power output and operating pressure, Prime air compressors offer varying air delivery rates ranging from 0.43 to 1.1 m³/min; please select the model that best suits your requirements.
The choice depends on your air consumption, working pressure, number of connected machines, production shifts, and air quality requirements. For single or light-duty equipment, 11kW may be enough. For multiple machines or longer operating hours, 15kW or 22kW is more suitable.
Yes. Compared with split-type compressor systems, the integrated design reduces pipe connections, installation work, and layout complexity, helping users deploy the system more quickly.
